Revolutionizing Material Science: The Emergence of FLUID
In a remarkable advancement for the field of material science, researchers from Hokkaido University have unveiled a cutting-edge open-source robotic system known as FLUID, which stands for Flowing Liquid Utilizing Interactive Device. This innovative creation promises to democratize access to automated laboratory experimentation, particularly for those in under-resourced settings.
3D Printing Meets Robotics
Led by Professor Keisuke Takahashi, this project utilizes a 3D printer combined with readily available electronic components. This groundbreaking approach not only slashes the costs associated with traditional robotic systems but also allows researchers the freedom to customize the machine to meet their specific experimental needs. According to Mikael Kuwahara, the lead author of the study, the accessibility of FLUID represents a significant step toward making technology available to all researchers, regardless of their budget.
Precision in Material Synthesis
FLUID’s capabilities were showcased in a demonstration where it was used to automate the co-precipitation of cobalt and nickel, producing binary materials with exceptional precision. The research team aimed to highlight the efficiency and capabilities of the robotic system in creating complex materials that are vital for numerous applications.
Modular Design for Maximum Flexibility

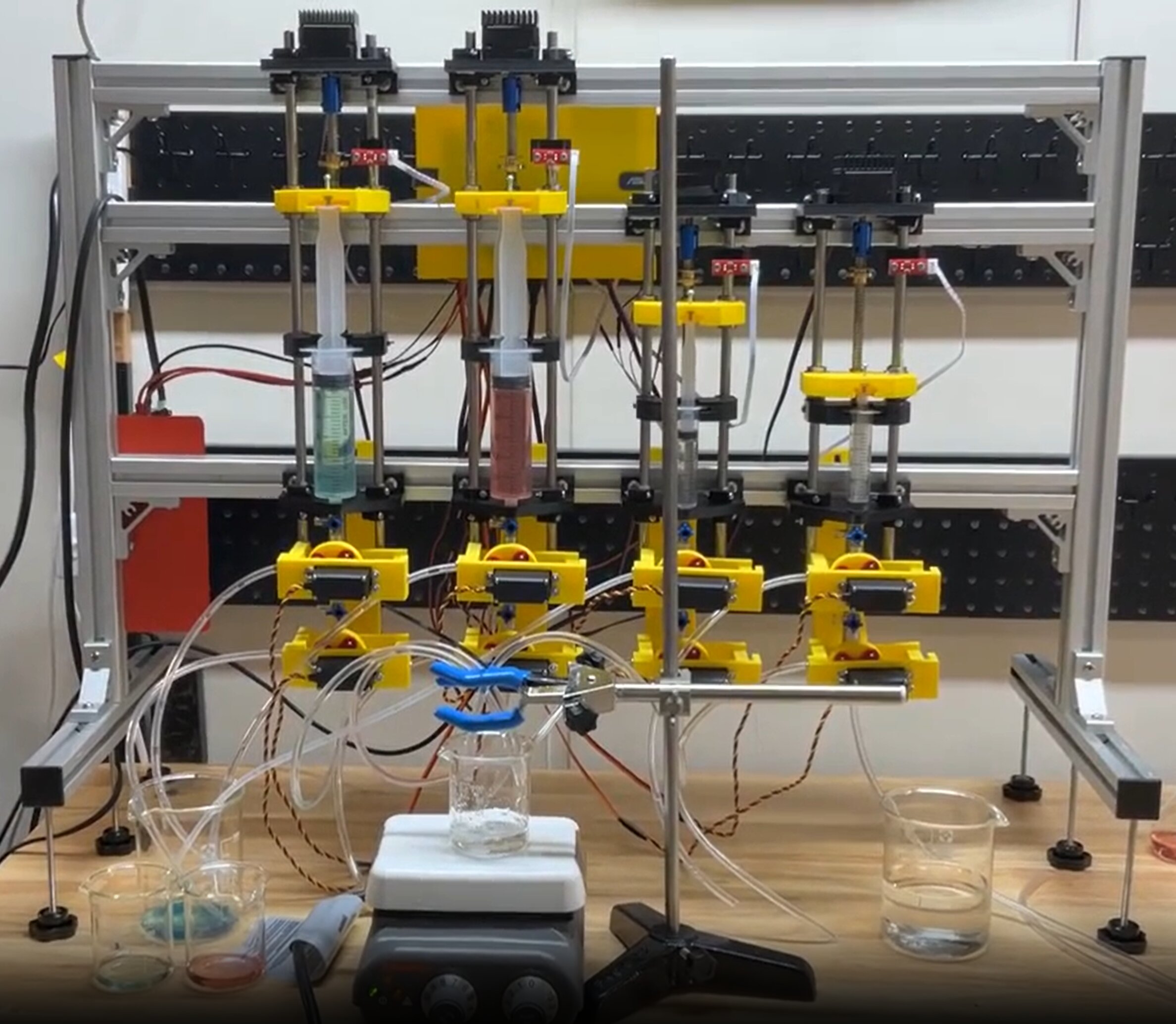

The hardware of FLUID consists of four independent modules, each equipped with vital components such as syringes, valves, and motors. This modular design makes it easy to replace parts and adapt the system for different tasks. Each module includes:
- A syringe
- Two valves
- A servo motor for valve control
- A stepper motor to handle precise syringe movements
- An end-stop sensor to monitor the syringe’s fill position
These modules connect to microcontroller boards, receiving commands from a computer via USB, allowing seamless integration and operation.
User-Friendly Interface
The system’s software is designed to enhance the user experience significantly. It allows researchers to control the robot’s functions, including valve adjustments and syringe movements, while also providing real-time status updates and sensor readings. This intuitive interface ensures that even users with minimal technical expertise can operate the robot effectively.
Open-Source Accessibility
One of the standout features of FLUID is its open-source model. The design files are publicly available, enabling any researcher around the world to replicate or modify the robot according to their experimental requirements. This openness could catalyze a new wave of innovation in automated experimentation, especially in material science labs globally.
Bridging Resource Gaps
In a world where many scientists struggle with expensive commercial solutions, FLUID provides a breath of fresh air. Researchers in resource-limited environments, or those focused on niche areas, can now pursue complex experiments without incurring substantial financial barriers. The customizable nature of FLUID means that they can adapt the system to suit their specific research parameters without needing extensive investments.
Democratizing Innovation
Professor Takahashi underscores the mission behind FLUID: to democratize automation in material synthesis. He states, "This approach provides researchers with a practical and affordable solution to hasten innovation in materials science." With FLUID, the prospect of conducting sophisticated experiments is brought within reach for many.
Future Enhancements and Features
Looking forward, the researchers plan to incorporate additional sensors into the FLUID system. Possible enhancements include monitoring various parameters such as temperature and pH. This will allow the robotic system to handle a broader range of chemical reactions, which can further push the boundaries of material synthesis capabilities.
Improvements in Data Handling
Future iterations will also see advancements in the software, with features such as macro recording to simplify repetitive tasks. Enhanced data logging will improve experimental reproducibility, an essential aspect of scientific research. The flurry of upgrades aims to address the dynamic needs of modern laboratories.
Academic and Commercial Potential
Beyond just academic researchers, FLUID holds significant potential in commercial settings as well. By providing a cost-effective solution to automation, businesses involved in material science can benefit from quicker turnaround times in research and development, ultimately accelerating product innovation.
The Role of Education
Educational institutions can take advantage of FLUID for both teaching and research purposes. The system not only serves as a practical tool in labs but also as a teaching aid for students to understand automation and robotics in the context of materials science.
Conclusion: A Game Changer for Researchers
In conclusion, the introduction of FLUID heralds a new chapter in automated materials synthesis. By making advanced robotic systems more accessible and affordable, this open-source initiative empowers a broader range of researchers to conduct innovative experiments. With potential developments on the horizon and a commitment to democratizing technology, FLUID is set to have a profound impact on the future of material science, fostering an environment where creativity and scientific exploration can flourish without the burden of financial constraints.
