Breakthrough in Robotics: Light-Powered Soft Robot Transports Loads Aerially
Robotics Takes Flight with Innovative Design
Researchers at North Carolina State University have unveiled an astonishing advancement in robotics—a light-powered soft robot that can autonomously carry cargo through the air along established tracks. This remarkable invention, akin to aerial trams or cable cars, can handle loads up to 12 times its own weight and navigate slopes up to 80 degrees.
The Genesis of the Soft Robot
Dr. Jie Yin, an associate professor of mechanical and aerospace engineering, highlights the research’s significance. "We’ve developed soft robots that can traverse water and solid ground with ease. Now, we aimed to create a design that could operate in the air across open spaces," Dr. Yin explains. This ambitious goal has now been achieved.
Unique Design Fuels Performance

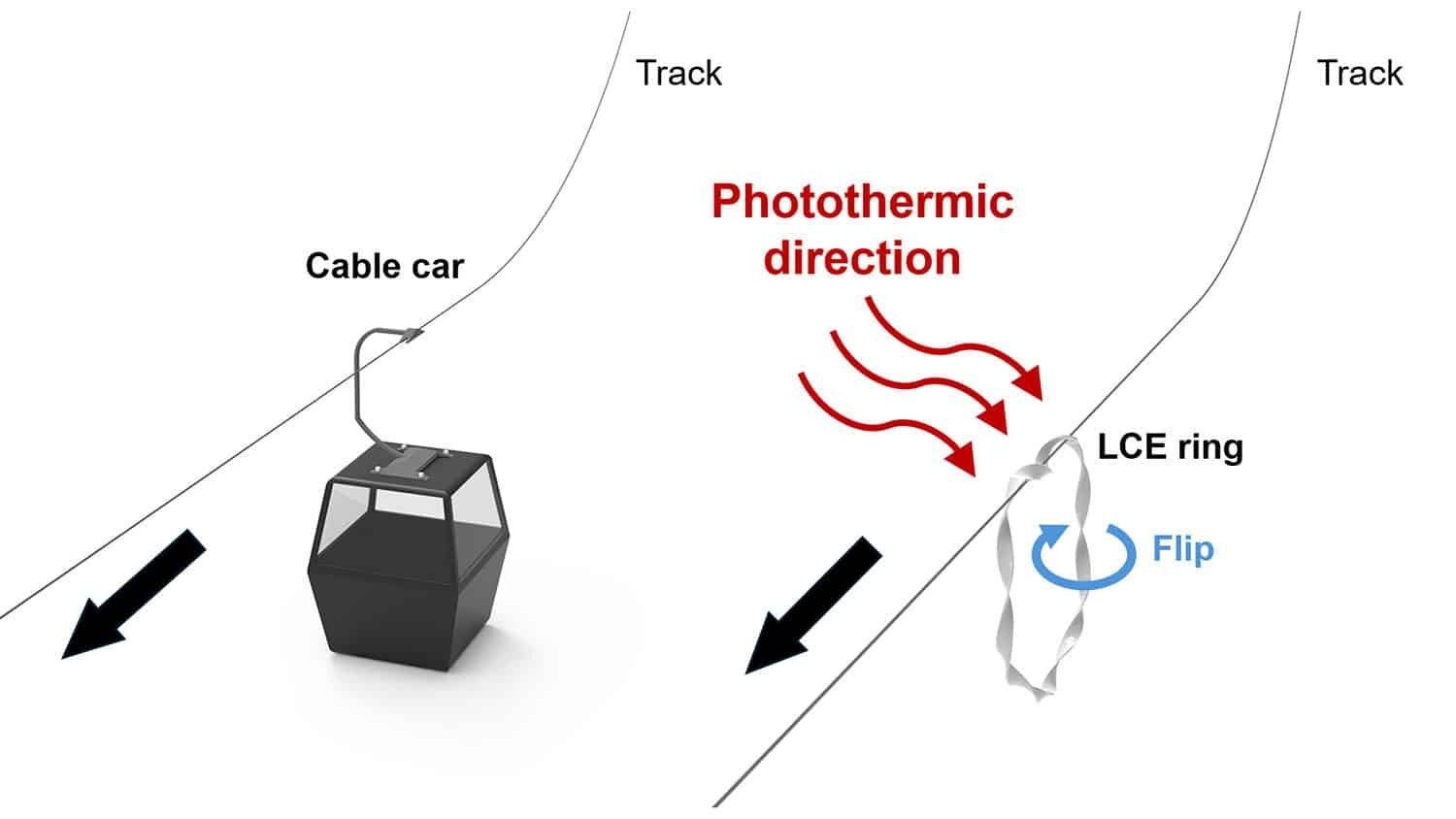

The design of this innovative soft robot utilizes ribbon-like liquid crystal elastomers, twisted together much like a rotini noodle. These are interconnected at one end, forming a loop reminiscent of a bracelet. Suspended on a track made of various materials—be it a wire, thread, or cable—the soft robot can be configured to hang at an angle parallel to the track for optimal movement.
Watch the Robot in Action
To truly grasp the mechanics at play, check out this demonstration video showcasing the soft robot’s impressive capabilities. The footage reveals the soft robot’s ability to carry loads while maneuvering along complex aerial tracks.
Harnessing the Power of Light
The operation hinges upon infrared light. When exposed perpendicularly to the track, the section of the ribbon that absorbs the most light contracts. This initiates a rolling action, allowing the robot to pull itself along the track as it continuously cycles between contraction and expansion.
Innovative Movement Mechanics
"As the ribbon turns, it mimics the action of a screw, permitting the soft robot to traverse the track, even while burdened," shares Dr. Yin. This unique mechanism opens avenues for applications that require aerial transportation capable of overcoming steep gradients.
Navigating Narrow and Complex Paths
The researchers successfully demonstrated that their soft robot could operate on tracks as thin as a human hair and as wide as a drinking straw. Even more impressive, the robot can deftly navigate obstacles, such as knots or bulges, and ascend or descend slopes effortlessly.
Adapting to Complex Routes
Fangjie Qi, the paper’s lead author and a Ph.D. student at NC State, emphasizes the robot’s versatility, stating, "It’s not confined to straight lines. We’ve shown it can follow curves, circles, and even complex three-dimensional spirals, all with precision." This adaptability points towards numerous practical applications in fields ranging from logistics to emergency services.
Future Applications on the Horizon
Looking ahead, Dr. Yin and his team are contemplating specific applications for this technology, along with potential adaptations. They aim to develop soft robots that can respond to various inputs beyond infrared light, possibly harnessing energy from sunlight or other external sources.
Conclusion: A New Era of Soft Robotics
The development of this soft ring robot marks a pivotal point in the field of robotics. Not only does it promise to enhance the efficiency of aerial transport systems, but it also reflects the incredible potential for soft robots to solve practical challenges across diverse sectors. As research continues, the implications of this innovation could redefine transportation and material movement for years to come, opening new horizons for future technologies.
For more information on this groundbreaking research, refer to the original paper by Fangjie Qi et al. in Advanced Science, published in April 2025.
